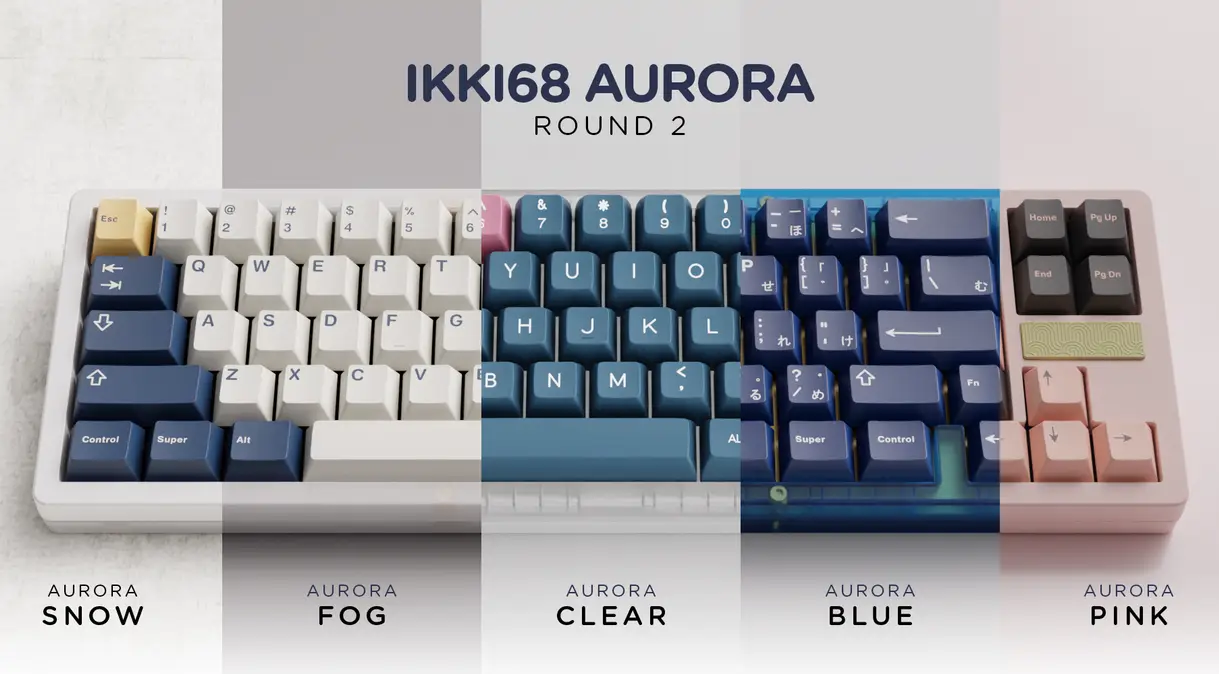

(พร้อมส่ง) Wuque Studio IKKI68 Aurora R2 Wired คัสต้อมคีย์บอร์ดแบบสาย

Wuque Studio … Aurora R2 Full PC Case.. Custom keyboard
Gasket mount (poron gasket set), Hot-swap

 Custom keyboard Kit only. no switch, no keycaps

Sound tests/Flex Test

Shoobs

• Aurora R2 Sound Test 1 (R2 pcb, R2 PC plate, thin factory lubed WS switch Aurora Clear, poron foams, bottom silicone )

• Aurora R2 Sound Test 2 (R2 pcb, R2 PC plate, WS switches, poron foam,no bottom silicone)

• Aurora R2 Flex Test (R2 pcb, R2 PC plate, no bottom silicone)

Alexotos

• Aurora R2 Sound Test (R2 pcb, R1 PC plate, poron foams, bottom silicone)

มาพร้อมอุปกรณ์แบบล้นๆ
ทั้งเคสใส่คีย์บอร์ด รวมถึงสาย custom coiled cable

PCB: Bodo: pcb ตัวใหม่สำหรับ R2 ที่บางกว่า R1 และมีความ flex มากกว่า แต่ยังคงให้ความ stable

Aurora Blue

Aurora case

Gasket Mount

Hotswap Badges

Compatibility

Alu tops and new PCB plate are compatible with R1.

We Recommend to use WS Stabs Aurora Series (1.2 mm PCB) for Aurora R2 PCB05 (Bodo) and PCB 06 (Iceland)

แนะนำให้สั่งซื้อ Stabs สำหรับรุ่น Aurora series เนื่องจากเป็น pcb 1.2mm

ถ้าใช้ stab รุ่นที่ไม่ได้ทำมาสำหรับ PCB 1.2มม ต้องมีการเสริม

Aurora R2 kits have 1.2 mm PCB by default, WS stabs fit them perfectly, no need for washers or shims. Since PCB05 and PCB06 have more hotswap sockets for various kinds of splits, normal washers or shims won’t sit properly. If you really want to use normal stabs, we suggest you to use threads or other things to lift up stabs like this. Alternatively, you can purchase Aurora Stabs here.

รับประกัน 3 เดือน

Typing sound test: https://bit.ly/3BScZKf

Aurora R2 Highlights:

·         Variable gasket mount structure. Remove some or all of the gasket chips to change from firm to bouncy. Both Silicone and Poron gaskets are included to fine tune the experience even further!

·         Default PCB (05 – Bodo) for wired version is a hot-swap PCB that supports multiple layouts! This is a very unique feature that lets you use any or all of split L Shift, split R Shift, split Backspace, stepped Caps Lock and ISO Enter, anytime you want. No soldering necessary! Default PCB (06 Iceland) for Wireless version is a Blue Tooth/VIA hotswap that supports splits like Bodo, except space bar. For all PCB specifications, please check PCB table here.

·         Default Silicone dampener kits and add-on poron dampener kit can provide different typing feel and sound, so you can test and choose the one you like most.

·         The badges are hot-swappable, meaning you can change them without taking apart the case! There will be a custom badge group buy in March / April 2021 that will offer 10+ custom designs in 4 different colors. You can even get a one of a kind badge made with your custom design!

·         Personalize your Aurora even further with the use of Logo Chips! The little cutout above the right Arrow Key has LEDs underneath. Cut your own design onto a piece of thick paper and put over the hole to see the light shine through. You can even 3D print plastic chips, laser cut other materials as well. The Aurora will come with one Wuque Studio branded chip, and a blank chip to cover the cutout in case you do not want to use it.

อุปกรณ์ที่ได้ทั้งหมด มีดังนี้

1x Ikki68 Aurora PC top (หรือ Alutop) and bottom case 1x PCB05 (Bodo) wired PCB หรือ Wireless PCB06 (Iceland)
1x Hotswap badge set 1x Default PC plate
1x Silicone dampening pad between PCB & plate 1x Silicone dampening pad between PCB & case 1x Silicon Gaskets Set
1x Poron Gaskets Set
1x Keyboard storage case
1x Coiled USB cable (Matches case color)
1x Wuque Studio logo chip, color matched to the plate. 1x blank logo chip color, color matched to the plate.
Extra stab washers,screws,diodes,sockets,keyboard feet,hex
screwdriver
