[M.ONE] Tata80 KEYBOARD KIT

(NO SWITCH / NO KEYCAPS)

We are glad to bring you Tata80 Keyboard Kit

Pre-order Time: 3-10 ธันวาคม 2565

Delivery Time:  ภายใน 30 วันหลังจากวันที่จบ groupbuy within one month of the end of the GB

Design by M.ONE Studio

Tata80 gallery: https://imgur.com/a/pJfc1QU

Tata80 Add-on page

โครงสร้างภายในแบบ Gasket mount สามารถเลือกใช้เป็น Swan gasket ที่ได้รับแรงบันดาลใจมาจากระบบแหนบของรถกระบะ ซึ่งให้ตัวได้มากกว่า หรือจะเป็น Silicone gasket ตามปกติทั่วไป ถ้าชอบฟีลลิ่งที่แข็งขึ้นมา

สวยงามด้วย PVD Badge ทั้งหมด 3 แบบ ตรงปุ่ม F13 ทางด้าน Layout ยังมี WK หรือ WKL ให้เลือก ส่วน Hot-swap PCB ความหนา 1.2mm รองรับการโปรแกรมผ่าน QMK/VIA

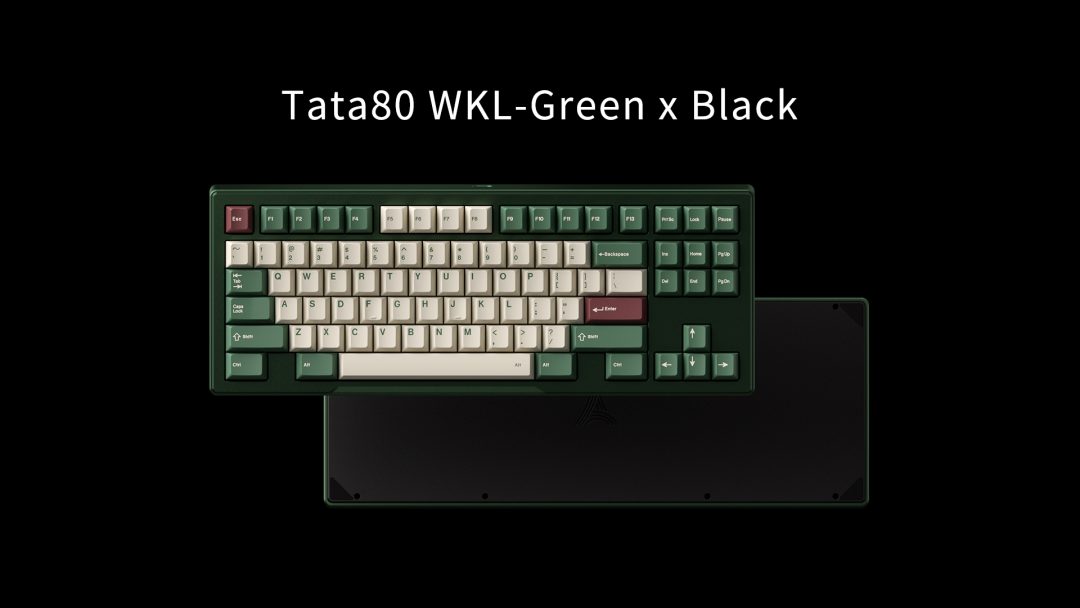

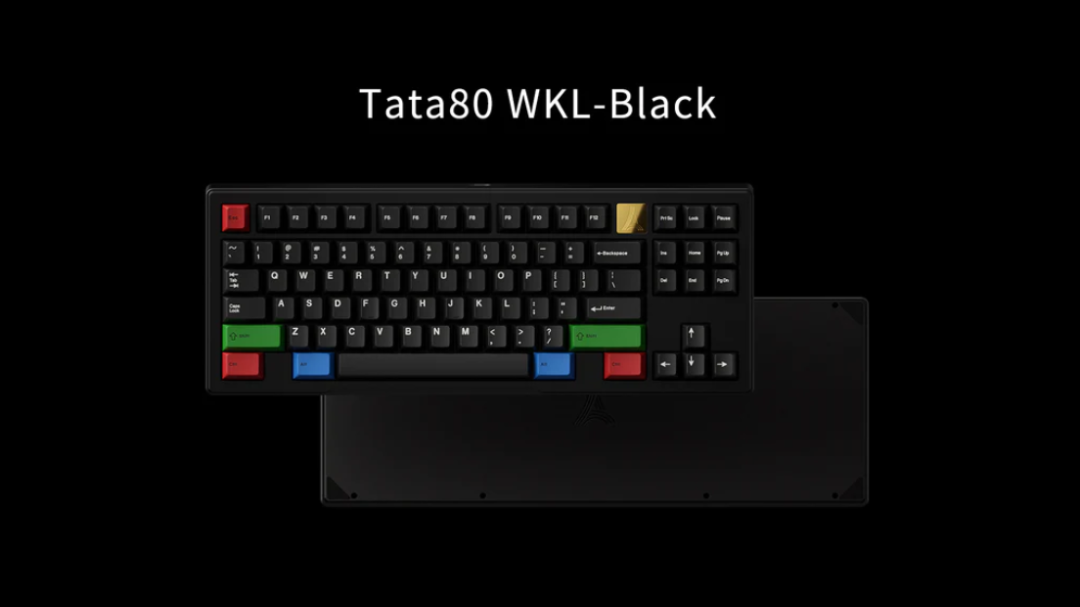

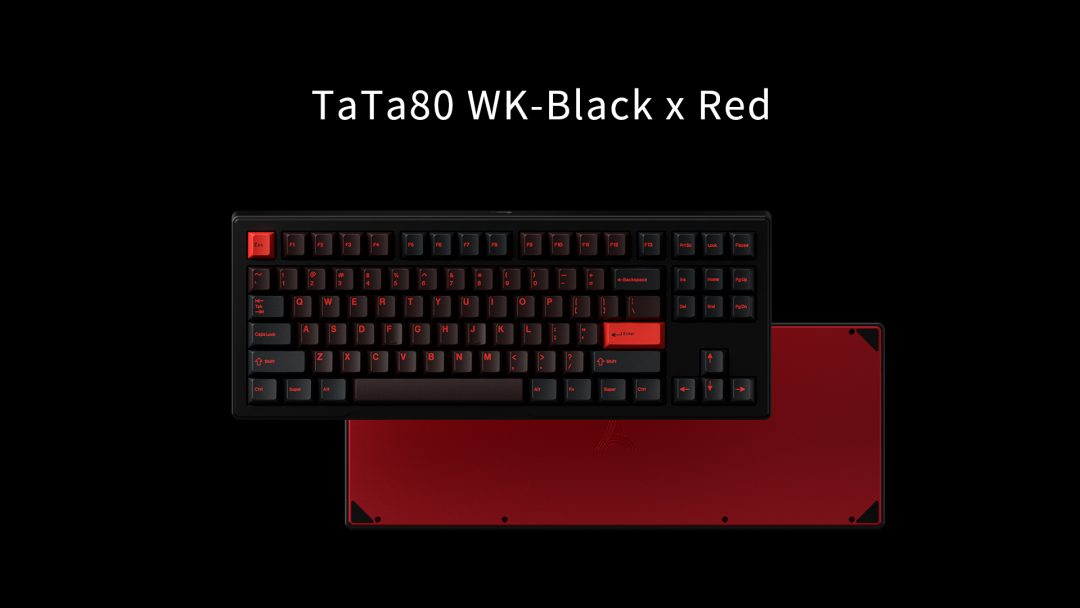

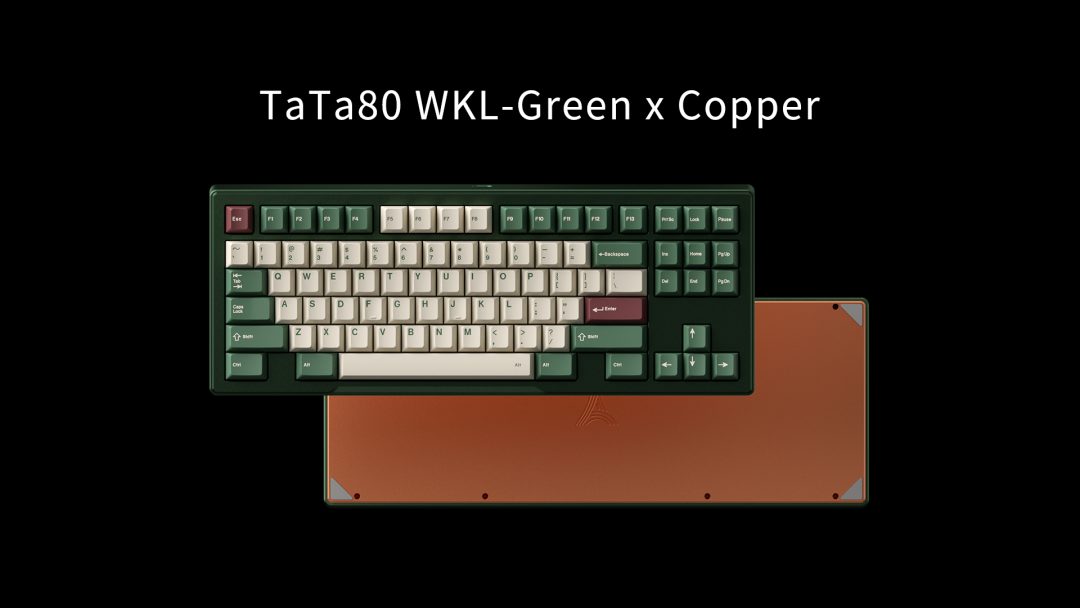

ให้เลือก layout ตามรูปด้านล่าง เนื่องจากในตัวเลือก ใส่รูปเพื่ออ้างอิงแบบสีเท่านั้น

Please choose a layout as shown below (In the options Pictures are for reference only)

 Keyboard Specifications

• Typing angle: 7 degrees
• Dimension: 368*140* (20-30) mm
• Front Height: 18.7mm
• Weight (unbuilt): 1.80 kg
• Case material: 6063 Aluminum
• Mounting Method: Gasket Mount
• Support ANSI Layout

PCB Specifications

• Hot-swap PCB: 1.2mm thick
• QMK/VIA support
• WK or WKL layout
• ESD Protection
• Flex cuts

TATA80 KEYBOARD KIT HIGHLIGHTS

WK and WKL Layout

– WKL Version PCB

Wired, hot-swap, supports QMK/VIA, 1.2mm thick, flex cuts.

– WK Version PCB

Wired, hot-swap, supports QMK/VIA, 1.2mm thick, flex cuts.

Swan Gasket

The Swan gasket is inspired by the car leaf spring structure. The main reason for using leaf springs as an elastic component on the car is that, apart from linking the axle to the car body, they can act as cushioning force and shock absorption. While there are so many gasket mount designs in the market, the elasticity provided gives more support to the plate and PCB, while allowing it to move always touching the metal sheets. Thus it can be bouncy but with enough support all the time.

Based on this design principle, M·ONE Studio designed a spring gasket that is shaped like the neck of a swan, so it was called the Swan gasket.

TATA80 KEYBOARD TYPING SOUND TEST

What’s Included

• Aluminium Top and Bottom Cases
• PC Plate
• Hot-swap PCB
• Internal Brass weight
• Poron foam under the top case
• Plate foam
• IXPE switch foam
• AI03 daughter board
• JST cable

• Keyboard feet
• Swan gasket modules
• Silicone gasket modules
• Case Foam
• Screw and hex screwdriver
• M·ONE Stabilizers

Group Buy Disclaimer

• Please note that this is a group buy. Estimates are our best guesses, they’re not guaranteed. Delays and setbacks may occur. DO NOT PURCHASE if you do not agree with the terms and conditions.
• There will be a 4.4% fee on order cancellations and refunds after placing an order.
• Your payment method will be charged as soon as you place the order. There are no refunds or cancellation after the group buy ends.
• • Small scratches inside the keyboard case, or dents on the case that are not visible when the keyboard is fully built. These are normal and within our quality acceptance.

Quality Disclaimer

• Small scratches inside the keyboard case, or dents on the case that are not visible when the keyboard is fully built. These are normal and within our quality acceptance.
