GB TIME: 9:30 AM February 9 , 2024 – 9:30 AM February 21, 2024 (Beijing Time)
Delivery Time: Estimated May
Wuque Studio Freya (without the interchangeable module on the left).
- Freya Ultra with Tri-mode PCB Include 4 modules(Slider, Macro, Knob and Navigation cluster), you can DIY your favorite combination
- Wired PCB only support 2 modules(Macro and Navigation cluster)
- The color of the slider button is default gold, and you have the option to purchase additional colors through an add-on (base case color)
- Tri-mode Hotswap PCB only support ANSI layout; wired solder PCB support ANSI and ISO layout
- Plate type: Aluminum outer + PC Inner
Wings Design
Freya’s Feathered Cloak, legendary for being woven from the feathers of various birds, is a powerful artifact that, when worn, provides the wearer with the ability to resist physical and magical attacks. But this isn’t just a tale of folklore – it’s a reality we’ve brought to your keyboard. We’ve meticulously sculpted the shape of wings into the sides of the keyboard, evoking a sense of connection to the mythical power.
Through the application of a secondary anodization process, we’ve beautifully carved the sides of the keyboard, offering you both aesthetics and texture. This isn’t just a keyboard; it’s a work of art that infuses your work and play with an atmosphere of mystery and magic. Unleash the power of Freya and experience an unparalleled keyboard journey.
Unlike the majority of keyboards on the market that feature a 90-degree vertical design, Freya distinguishes itself with a unique curved back design, reminiscent of the spread wings of a goddess. This design complements the overall aesthetic of Freya.
4 KEY FEATURES
Touch Screen Knob
This time, we’ve embarked on a bold design concept – merging the knob with a touchscreen. Encircled by four raised metal elements, the entire knob module resembles an altar, bestowing it with a more powerful appearance.
The knob is modular and can also function as four separate keys.
Knob Functions
- 5s boot animation, Image/Gif upload
- Rotate the knob to adjust the volume, press to enter the function page
- Support date, clock, power, information push
- Alarm Clock
- Notes
- Message notification
- Countdown
- Note: some functions are under development, if you have any ideas please share with us in comment or IC form. We will keep updating.
Non-Load-Bearing Gasket Structure
Our innovative keyboard draws inspiration from robust non-load-bearing structures. Adopting concepts from automotive suspension systems, we’ve integrated a spring structure into the bottom case, suspending the entire PCB assembly to ensure even key pressure distribution, stability, and responsiveness. The springs absorb typing pressure while the silicon gaskets provide an anti-friction effect. Together, our design prioritizes a comfortable typing experience and ensures a satisfying, consistent typing encounter.
We offer springs with 3 types of flexibility: strong, medium and weak.

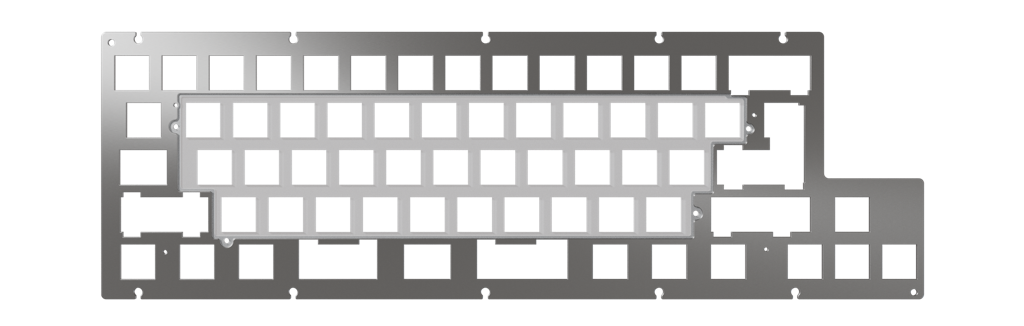

Aluminum Outer + PC Inner (Default)
Innovative Split Plate Design
We have adopted an innovative design featuring a split plate. Drawing inspiration from the sweet spot structure of tennis rackets, we have employed distinct materials for the alphanumeric keys area and other keys area. This design not only provides a soft and responsive touch for the alphanumeric keys area but also ensures a crisp and efficient response for other keys.
Aluminum Outer + PC Inner is default, other combinations can be purchased additionally
FREYA ULTRA INTERNAL STRUCTURE
SIZE AND DIMENSIONS
FREYA ULTRA LAYOUT
Freya Ultra includes four modules (Slider, Macro, Knob and Navigation cluster)
Tri-mode only support ANSI layout
Wired support ANSI and ISO layout
What’s in the Box
Note: The image serves as a mere representation. The final product may vary due to bulk production. รายละเอียดบางรายการอาจมีเปลี่ยนแปลงเล็กน้อยโดยไม่ได้ลดทอนึุณภาพลง
EXCLUSIVE DESIGNED CASE FOR FREYA
Layout
Freya: 68%
PCB Type
Tri-mode flex cut, 1.2mm, Hotswap, ANSI Layout, Support Touch Screen Knob Module and Slider Module
Tri-mode non-flex cut, 1.6mm, Hotswap, ANSI Layout, Support Touch Screen Knob Module and Slider Module
Wired non-flex cut, 1.6mm, Solder, Support ISO & ANSI Layout, Not support Touch Screen Knob Module and Slider Module
Bluetooth
Support Bluetooth 5.3
Available Connected
3 Devices
Typing Angle
6.5°
Static Protection
Yes
VIA Support
Yes
Color
The bezel color is the same as the case color, the dial face frame is gold by default.
PCB with RGB or not
Tri-mode support, wired does not support
Weight
1588g
Stabilizer
WS Stabs V3.1
Screen Lens
33.75 x 33.22mm
LCD Screen Size
30.23mm
Resolution
390 x 390 px
FPS (Upper Limit)
10
Image Refresh Time
42-51ms
DISCLAIMER
Please note that this is a group buy. Estimates are our best guesses, they’re not guaranteed. Delays and setbacks may occur. DO NOT PURCHASE if you do not agree with the terms and conditions.
There will be a 4% fee on order cancellations and refunds after placing an order.
Your payment method will be charged as soon as you place the order. There are no refunds or cancellation after the group buy ends.
Quality Disclaimer
Small scratches inside the keyboard case, or dents on the case that are not visible when the keyboard is fully built. These are normal and within our quality acceptance.
Since there are so many variations, renders are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype’s photos as reference before purchasing.
| น้ำหนัก | ไม่ระบุ |
|---|---|
| Color | Anodized Black, Anodized Burgundy, Anodized Pine, E-White, Anodized Gunmetal, Anodized Champagne Gold, Anodized IceBlue, Anodized Deep Purple, Anodized TiffanyBlue, E-Cream |
| Bottom Case Color | Anodized Gold, Anodized Silver, PVD Silver, Anodized Rosegold, Anodized Copper |
| PCB Type | Tri-mode Flex cut, Tri-mode Non-flex cut, Wired Solder Non-flex cut |
